Cov ntsiab lus:Phau ntawv qhia no piav qhia txog kev tsim, kev siv, kev ua tau zoo, kev xaiv, kev saib xyuas, thiab cov kev coj ua zoo tshaj plaws rau kev teeb tsatapered roller tsheb bearings. Nws yog lub hom phiaj los pab cov thawj tswj hwm nkoj, cov kws kho tsheb, thiab cov kws tsim khoom siv nkag siab tias cov kabmob no hais txog kev txhawb nqa thiab kev ntseeg siab li cas hauv cov tsheb hnyav.
Cov Lus Qhia
- Taw qhia
- Dab tsi yog Tapered Roller Truck Bearing?
- Cov txiaj ntsig tseem ceeb & Nta
- Common Truck Applications
- Yuav Ua Li Cas Xaiv Txoj Cai Bearing
- Installation & Maintenance Tips
- Cov lus nug nquag
- Xaus
Taw qhia
Lub log tsheb kawg, axles, thiab cov khoom siv tsav tsheb yuav tsum tiv taus hnyav radial thiab axial loads thaum tswj kev sib hloov thiab kev pabcuam ntev. Kev xaiv cov kabmob tsis raug lossis kev saib xyuas tsis zoo tuaj yeem ua rau lub log vibration, thaum tshav kub kub tsim, hnav ntxov ntxov, lossis cov khoom tsis ua haujlwm. Tapered roller truck bearings yog tsim los daws cov teeb meem no los ntawm lawv qhov tshwj xeeb geometry thiab kev tsim kho zoo.

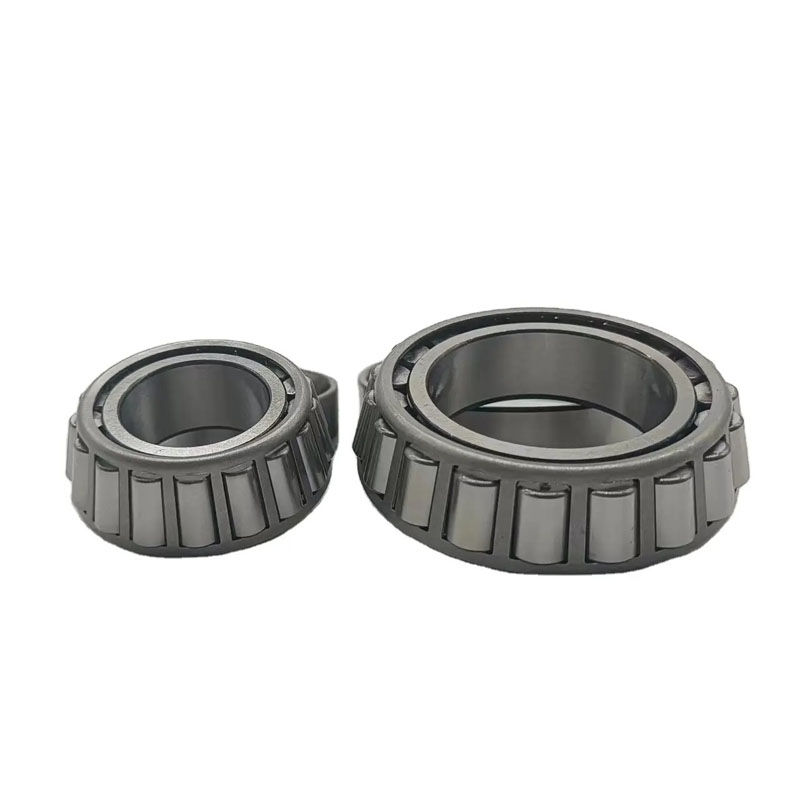

Dab tsi yog Tapered Roller Truck Bearing?
Tapered roller truck bearing yog ib hom dov-ntxhais kabmob uas tsim los nrog lub nplhaib sab hauv thiab sab nraud thiab conical zoo li tus menyuam. Kev sib tshuam ntawm lub cone geometry enables ib txhij txhawb nqa ntawm radial (sab) thiab axial (thrust) loads, uas yog ib qho tseem ceeb nyob rau hauv hnyav-lub luag hauj lwm daim ntawv thov lub tsheb uas hnyav thiab tsav tsheb sib txawv nrog ceev thiab kev taw qhia.:contentReference[oaicite:0]{index=0}
| Cheebtsam | Muaj nuj nqi |
|---|---|
| Inner Ring (Lub khob hliav qab) | Seats rollers thiab aligns load hloov mus rau lub ncej. |
| Lub nplhaib sab nraud (khob) | Muab cov kabmob khiav-txoj kev nto thiab vaj tse haum. |
| Tapered Rollers | Xa cov khoom sib xyaw nrog cov kab sib txuas kom txo tau hnav. |
| Cage | Separates rollers kom tswj tau qhov sib nrug thiab kev sib hloov ruaj khov. |
Qhov kev tsim no txo kev sib txhuam thiab txuas lub neej nyob rau hauv kev ua haujlwm hnyav. Cov khoom siv feem ntau tuaj yeem sib sau ua ke lossis mounted nyias, yooj yim rau kev teeb tsa thiab kev pabcuam.:contentReference[oaicite:1]{index=1}
Cov txiaj ntsig tseem ceeb & Nta
- Combined Load Support:Tuav ob lub radial thiab axial rog ib txhij, tseem ceeb rau kev tsav tsheb thiab tsav qag.:contentReference[oaicite:2]{index=2}
- High Durability:Conical kev sib cuag kis mus rau qhov chaw loj dua, txo cov kev ntxhov siab hauv zos thiab hnav.:contentReference[oaicite:3]{index=3}
- Adjustable Preload:Kev teeb tsa ua ntej tuaj yeem ua kom zoo dua qub thiab txo kev co.:contentReference[oaicite:4]{index=4}
- Kev Pabcuam:Cov khoom sib cais ua kom yooj yim sib dhos thiab tshuaj xyuas.:contentReference[oaicite:5]{index=5}
- Thaum tshav kub kub & Friction Management:Kev ua tau zoo nyob ruaj khov nyob rau hauv hnyav hnyav nrog lubrication zoo.:contentReference[oaicite:6]{index=6}
Common Truck Applications
Tapered roller tsheb bearings tshwm sim nyob rau hauv ntau lub tsheb hnyav hnyav vim lawv cov khoom sib xyaw ua ke thiab kev ntseeg tau. Cov ntawv thov ib txwm muaj xws li:
- Log Hubs:Bearings nyob rau hauv pem hauv ntej thiab nram qab hubs tswj load los ntawm lub tsheb hnyav thiab txoj kev rog.:contentReference[oaicite:7]{index=7}
- Steering Axles:Precise load txhawb rau steering knuckles thiab spindles.:contentReference[oaicite:8]{index=8}
- Tsav Axles:Transmits torque thaum txhawb axial thrust los ntawm driveshafts.:contentReference[oaicite:9]{index=9}
- Trailer Ends:Ntev-ntev thiab hnyav-them trailers tau txais txiaj ntsig los ntawm kev sib koom ua haujlwm muaj zog.:contentReference[oaicite:10]{index=10}
Yuav Ua Li Cas Xaiv Txoj Cai Bearing
Kev xaiv cov kabmob raug rau lub tsheb thauj khoom yuav tsum tau ua raws li qhov yuav tsum tau ua, qhov ntev ntawm lub tog raj kheej, ib puag ncig kev ua haujlwm, thiab kev cia siab rau kev pabcuam:
| Cov txheej txheem | Kev txiav txim siab |
|---|---|
| Load Rating | Tshawb xyuas radial thiab axial muaj peev xwm ua tau raws li lub tsheb specifications. |
| Loj & haum | Match bore, sab nraud, thiab dav rau vaj tse thiab ncej. |
| Sealing & Lubrication | Xaiv cov ntsaws ruaj ruaj thiab roj haum rau plua plav, dej, thiab cua sov. |
| Preload Settings | Tsim kom raug sab hauv clearance thaum lub installation. |
Cov kabmob uas tsim los rau cov tsheb thauj khoom yog feem ntau yog ua los ntawm cov hlau alloys uas muaj zog heev thiab kho cua sov kom tiv taus hnav hauv siab thiab kev co.:contentReference[oaicite:11]{index=11}
Installation & Maintenance Tips
- Cov cuab yeej Mounting kom raug:Siv cov presses los yog bearing heaters kom tsis txhob puas chais los yog raceways.
- Ib puag ncig huv:Khaws cov khoom kom tsis txhob muaj av kom tsis txhob hnav thaum ntxov.
- Lubrication:Siv roj nrog viscosity tsim nyog rau kev khiav hauj lwm qhov kub thiab txias.
- Kev hloov kho Preload:Muaj tseeb teeb tsa cov kabmob preload kom ua tiav kev sib cuag zoo yam tsis muaj kev sib txhuam ntau dhau.
- Kev soj ntsuam Intervals:Tsis tu ncua xyuas lub suab nrov, cua sov, los yog xoob raws li qhov taw qhia ntawm hnav.
Cov lus nug nquag
Dab tsi ua rau cov menyuam kabmob sib txawv ntawm lwm cov kabmob?
Tapered roller bearings yog tsim los nrog conical ntsiab uas txhawb nqa ob qho tib si axial thiab radial loads, tsis zoo li cov qauv pob bearings uas feem ntau txhawb nqa radial loads.:contentReference[oaicite:12]{index=12}
Tapered roller tsheb bearings tuaj yeem ua haujlwm hnyav kev loj thauj khoom?
Yog lawm, lawv tus qauv tsim faib cov khoom thauj thoob qhov chaw loj dua, ua rau lawv nqa cov khoom sib xyaw tseem ceeb ntawm cov tsheb thauj khoom hnyav.:contentReference[oaicite:13]{index=13}
Ntev npaum li cas lub log tsheb yuav tsum tau txais kev pabcuam?
Lub sijhawm pabcuam yog nyob ntawm kev siv tsheb, ib puag ncig, thiab thauj khoom. Kev tshuaj xyuas niaj hnub thaum lub sijhawm tu ncua ua kom lub neej muaj sia thiab tiv thaiv tsis tau teem sijhawm.
Yuav ua li cas yog tias preload tsis raug?
Kev ua haujlwm tsis raug cai tuaj yeem ua rau muaj cua sov ntau dhau, hnav ua ntej ntxov, muaj kev sib txhuam ntxiv, thiab txo qis kev pab cuam lub neej. Xyuas kom tseeb cov chaw txhim kho kev ua tau zoo thiab kev ntseeg tau.:contentReference[oaicite:14]{index=14}
Xaus
Tapered roller truck bearings yog lub hauv paus tseem ceeb hauv kev tsim tsheb hnyav. Lawv cov kev txhawb nqa sib xyaw ua ke, kev ua haujlwm ntev hauv cov xwm txheej hnyav, thiab kev kho kom haum ua rau lawv muaj kev txhim khu kev qha rau lub log tsheb kawg thiab lub tshuab tsav tsheb. Los ntawm kev nkag siab txog cov txheej txheem xaiv, kev teeb tsa kev coj ua zoo tshaj plaws, thiab cov txheej txheem kev saib xyuas, cov neeg ua haujlwm tuaj yeem ua kom lub sijhawm ua haujlwm siab tshaj plaws thiab txo cov nqi ntawm lub neej.
Lanomuaj ntau yam zoo tapered roller tsheb bearings engineered rau kev thov. Yog tias koj xav tau kev txhawb nqa kws tshaj lij los xaiv cov kabmob zoo rau koj lub nkoj lossis qhov project,tiv tauj pebrau kev pab tus kheej thiab kev sib tw daws teeb meem raws li koj xav tau.
